It can detect various types of mechanical water meters, ultrasonic water meters and electromagnetic water meters with various range ratios;With Piston system, support min flow rate 2L/H(Regular model 2L/h), suitable for manufacture & professional lab use;Adopt Siemens PLC control system, stable and reliable operation;It is easy to operate and supports full automatic/semi-automatic/manual operation.The software automatically generates test reports, and the test report template can be customized. A variety of data collection methods are available, including RS485/infrared/pulse/image/optical fiber, etc.It can support personalized function customization. Supports self-calibration of electronic scales and pistons Pressure test upto 16barWith Chiller

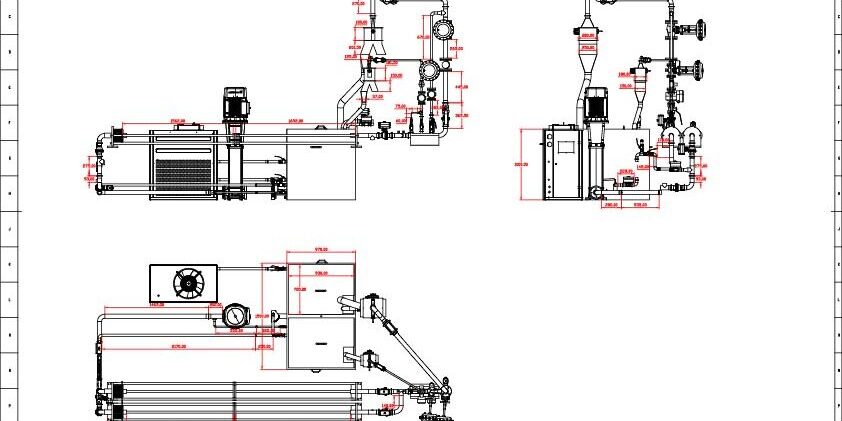

The gravimetric method test bench suitable for test meter sizes DN15 to D50 with a Qmax = 32 m3/h
The software automatically generates test reports, and the test report template can be customized
With piston prover, support min flow rate 2LPH (Regular model 2LPH)
Compliance to OIML R49, ISO 4064, Taqyees and SASO requirements
A fully automated system controlled by a PLC
For DN15, 20, 25, 32, 40 and DN50
Piston prover volume is 0.025 m3
Weighing scale-60kg & 600kg
Testing with potable water
Flow rate – up to 32 m3/h
20 meters places per test
Compact design
Upto R800
